Ever struggled with textures that stretch, distort, or fail to align properly on your 3D models?
These issues can ruin the realism of your designs, whether you're creating game characters, architectural visualizations, or product prototypes.
UV mapping is the solution—a technique that precisely projects 2D textures onto 3D models, ensuring seamless visual accuracy.
What is UV Mapping?
UV mapping is the process of flattening a 3D model's surface into a 2D representation to apply textures accurately. Each vertex of the model is assigned UV coordinates, which correspond to positions on a texture map. The U and V axes represent horizontal and vertical directions on the 2D texture, independent of the model’s XYZ coordinates in 3D space.

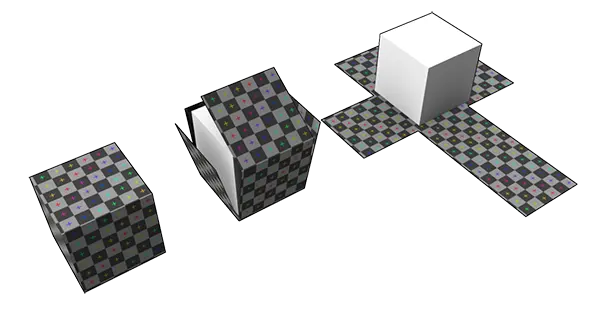

Simply put, UV mapping is like unfolding a 3D object into a flat, 2D template, just like how a cardboard box can be cut and laid out flat before being folded back into shape. In the image, the cube on the right represents the unwrapped UV layout, where the 3D shape is broken down into a 2D map. The middle cube shows how the texture aligns when applied, and the left cube demonstrates the final result with the texture accurately wrapped around the 3D model.
What is UV Mapping Used For?
UV mapping is essential across multiple industries, allowing for precise texture application on digital models. Its key applications include:
- Game Development: Ensures detailed character and environment textures, enhancing realism.
- Film & CGI: Enables seamless integration of CGI elements with live-action footage.
- Product Design: Visualizes material finishes for prototypes before manufacturing.
- VR & AR: Maintains realistic texture details for immersive digital experiences.
- 3D Printing: Ensures accurate texture-to-surface representation in the final print.
How Does UV Mapping Work?
The UV mapping workflow consists of several critical steps to transform a 3D model into a properly textured object:
- Seam Placement: Artists strategically place seams along natural edges to divide the model into UV islands, minimizing visible texture distortions.
- Unwrapping: The model's surface is flattened into a 2D space, ensuring texture alignment and proportion consistency.
- UV Layout Optimization: The unwrapped sections (UV islands) are arranged efficiently within a texture atlas to maximize resolution and minimize wasted space.
- Texture Application: The final texture is mapped onto the model, ensuring precise alignment with its 3D geometry.
UV Mapping vs. UV Unwrapping
While UV mapping refers to the entire process of applying textures to a 3D model, UV unwrapping is a crucial sub-step that involves flattening the model into a 2D layout. Without proper unwrapping, textures can appear stretched, misaligned, or improperly scaled.
UV Unwrapping Process
- Marking Seams: Artists determine natural breakpoints where the model can be split without affecting visual continuity.
- Generating UV Islands: The model is segmented into manageable 2D sections, minimizing distortion.
- Packing the UV Map: Islands are arranged within the texture space for optimal resolution and efficient use of the texture map.
UV Mapping Techniques
Various techniques help achieve the best UV layout for different models:

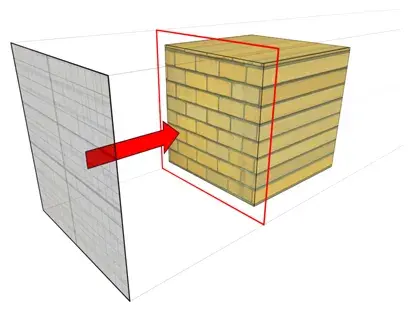

- Planar Mapping: Projects the texture from a single direction, ideal for flat surfaces.

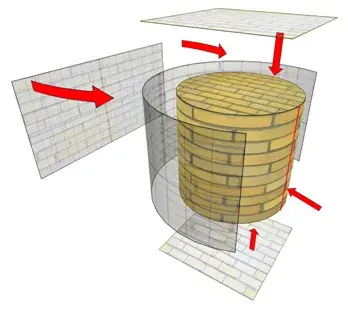

- Cylindrical Mapping: Wraps textures around cylindrical shapes like pipes or bottles.
- Spherical Mapping: Best suited for round objects such as planets and spheres.
- Box Mapping: Uses six orthogonal projections for cubic or box-like models.
- Advanced Algorithms: Least Squares Conformal Mapping (LSCM) and Angle-Based Flattening (ABF) minimize distortion in complex shapes.
Advanced UV Mapping Tools
Choosing the right UV mapping tool can streamline your workflow and improve texture accuracy. Here are some of the top tools available:
- Meshy AI: AI-powered UV mapping for fast, optimized results with automated seam placement and layout adjustments.
- Blender: A free, versatile tool with robust UV mapping capabilities, including smart unwrapping and manual editing.
- Substance Painter: An advanced UV editing and texture painting tool ideal for creating high-quality materials.
- RizomUV: A dedicated UV mapping tool with powerful unwrapping algorithms and intuitive packing features.
- Maya: An industry-standard software with comprehensive UV tools, used by professionals in film and game development.
Conclusion
Mastering UV mapping is crucial for 3D artists aiming to create highly detailed and realistic models. This technique ensures that textures adhere seamlessly to 3D surfaces, enhancing visual accuracy in gaming, animation, product design, and beyond. With advanced tools and optimization techniques, artists can streamline workflows and push the boundaries of digital creativity.
FAQ
What is the difference between UV mapping and UV unwrapping?
UV mapping refers to the entire process of assigning textures to a 3D model, while UV unwrapping specifically involves flattening the model into a 2D layout for texture application.
How can I improve my UV mapping skills?
Practice different mapping techniques, follow tutorials, and experiment with tools like Substance Painter and 3D-Coat. Understanding the impact of seams and UV island placement is key.
What are the best tools for UV mapping?
Popular tools include Meshy AI for automated UV layout, Substance Painter for real-time texturing, and 3D-Coat for advanced unwrapping and painting.
Why is UV mapping important for 3D artists?
UV mapping ensures textures appear accurately on 3D models, preventing stretching or distortion. It is essential for realism in games, films, and digital design.
What is the principle of UV mapping?
UV mapping works by assigning UV coordinates to a model's vertices, translating a 3D surface into a 2D plane for precise texture application.
